SpeechExec Transcription Set

LFH7277

Ergonomic foot control
for comfortable use even when used over extended periods

Lightweight stereo headphones
for enhanced wearing comfort

SpeechExec workflow software
for efficient data management

Priority setting and notifications
for urgent recordings

Optimize your workflow

with a professional document-creation solution

The Transcription Set is a digital document creation solution specifically designed to make transcription easy and intuitive. The ergonomic accessories and the innovative SpeechExec Pro workflow software let you manage your jobs easily.

Features

Ergonomic foot control for comfortable use even when used over extended periods

The foot control was developed in cooperation with hospital ergonomists and day-to-day power users to ensure a perfectly smooth transcription process with minimal physical strain. Magnetically controlled contact switches, rugged pedals and a waterproof design make it extremely durable and give the device and very long life.

Fast and efficient playback control for quicker and more accurate transcriptions

Start, pause, rewind and fast-forward audio files with only a slight movement of the foot tip, keeping your hands free for uninterrupted typing.

Lightweight stereo headphones for enhanced wearing comfort

Lightweight, under-the-chin-style stereo headphones designed to deliver excellent sound quality, with soft ear cushions for enhanced wearing comfort.

SpeechExec workflow software for efficient data management

The SpeechExec software organizes the workflow of dictation files and resulting documents between author and transcriptionist and allows them to monitor the status of their work.

Priority setting and notifications for urgent recordings

With the included priority-setting option, urgent recordings can be prioritized. This guarantees that important dictation files will be identified at a glance and get processed and delivered first.

Individual sort and filter options for easy file organization

SpeechExec Pro Transcribe enables users to search for specific dictation files or filter their dictation list by user-definable criteria. Furthermore, the easy-to-use list-sorting options for single and multiple dictations guarantee a quick overview of dictation files.

Geared for Dragon NaturallySpeaking speech-recognition software

The seamless integration of Philips dictation recording devices and the direct interface to Dragon NaturallySpeaking Professional speech recognition software guarantee superb audio quality, high recognition accuracy, and easy hardware administration.

Seamless integration into Philips digital dictation solutions

The transcription set can be seamlessly and easily integrated into existing Philips digital dictation solutions.

Convenience

Configurable foot control
Lightweight headphone design
Clear job overview
Geared for speech recognition
Versatile audio player
Playback speed control
Automatic file routing

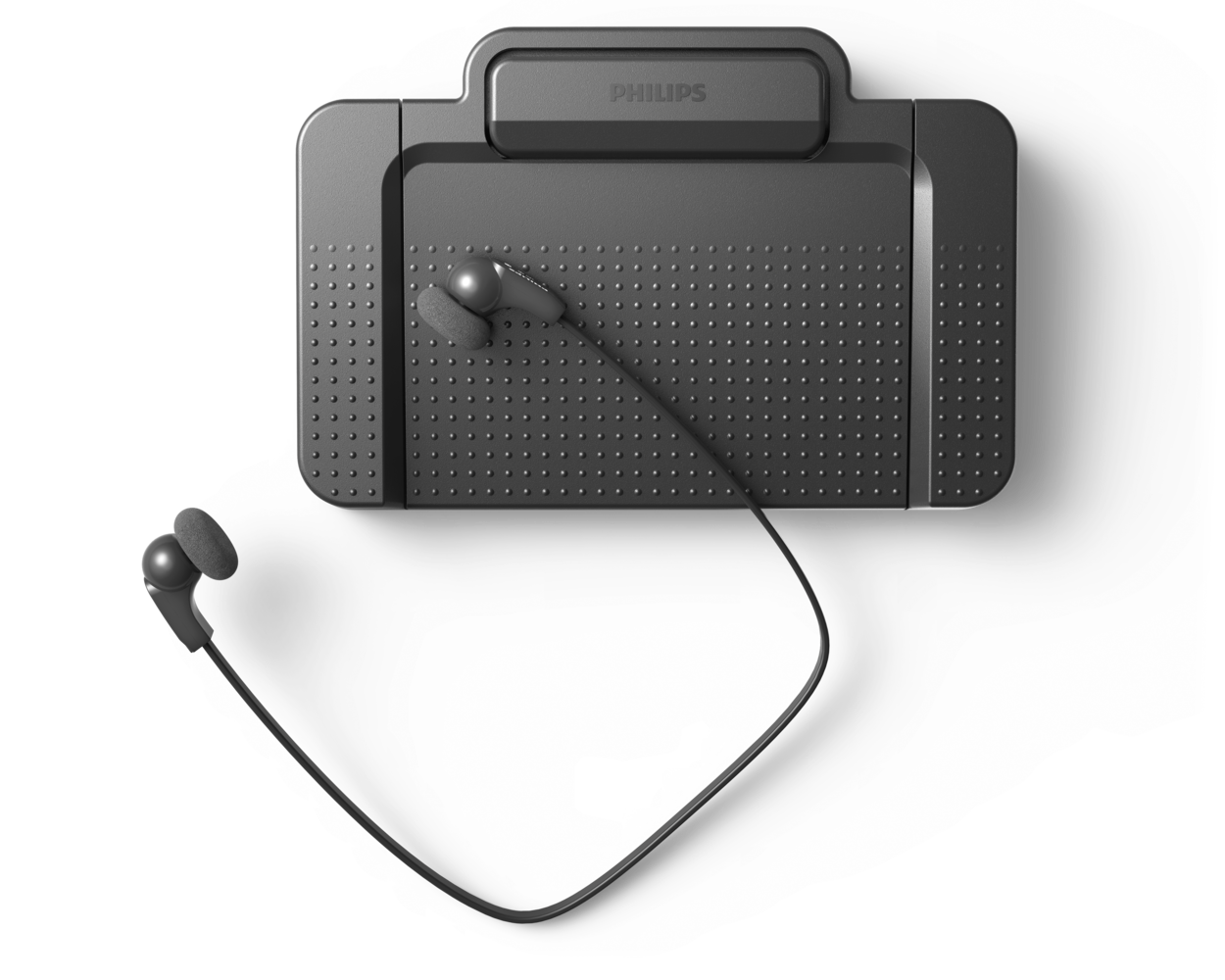

Foot control

Connectivity: USB plug
Product dimensions: 198 mm × 54 mm × 170 mm/7.8" × 2.1" × 6.7"
Weight: 650 g/23 oz
Waterproof design

Headphones

Style: under chin
Cable connection: one-sided
Cable length: 3.0 m/10 ft
Connector: 3.5 mm, stereo, right angled
Acoustic system: open
Magnet type: neodymium
Diaphragm: PET dome
Voice coil: copper
Impedance: 2 × 32 Ohm
Maximum power input: 2 × 10 mW
Sensitivity: 103 dB
Speaker diameter: 14 mm/0.6"
Sound quality: optimized for voice playback
Connector finish: gold-plated
Weight: 53 g/1.9 oz

System requirements for Philips SpeechExec software

Processor: Intel dual core or equivalent AMD processor, 1 GHz or faster processor
RAM: 4 GB (64 bit)
Hard-disk space: 100 MB for SpeechExec software, 4.5 GB for Microsoft .NET Framework
Operating system: Windows 11 Pro/Enterprise
Graphics: DirectX-compliant graphics card with hardware acceleration recommended
Screen resolution: minimum 1024 × 768 px with 100% DPI scaling, maximum 3200 × 1800 px with 150% DPI scaling
Sound: Windows-compatible sound device
Free USB port
Internet connection for required software activation
Headphone output or speakers

Additional system requirements for speech recognition software

Supported speech recognition software: Nuance Dragon Professional 16 Individual/Group, Nuance Dragon Legal 16, Dragon Medical Practice Edition 4
Processor: Intel dual core or equivalent AMD processor, 2.2 GHz or faster processor
RAM: 4 GB (32 bit)/8 GB (64 bit)
Hard-disk space: 8 GB
Operating system: Windows 11 Pro/Enterprise, Windows 10 Pro/Enterprise (64 bit)

Green specifications

Compliant to 2011/65/EU (RoHS)
Lead-free soldered product

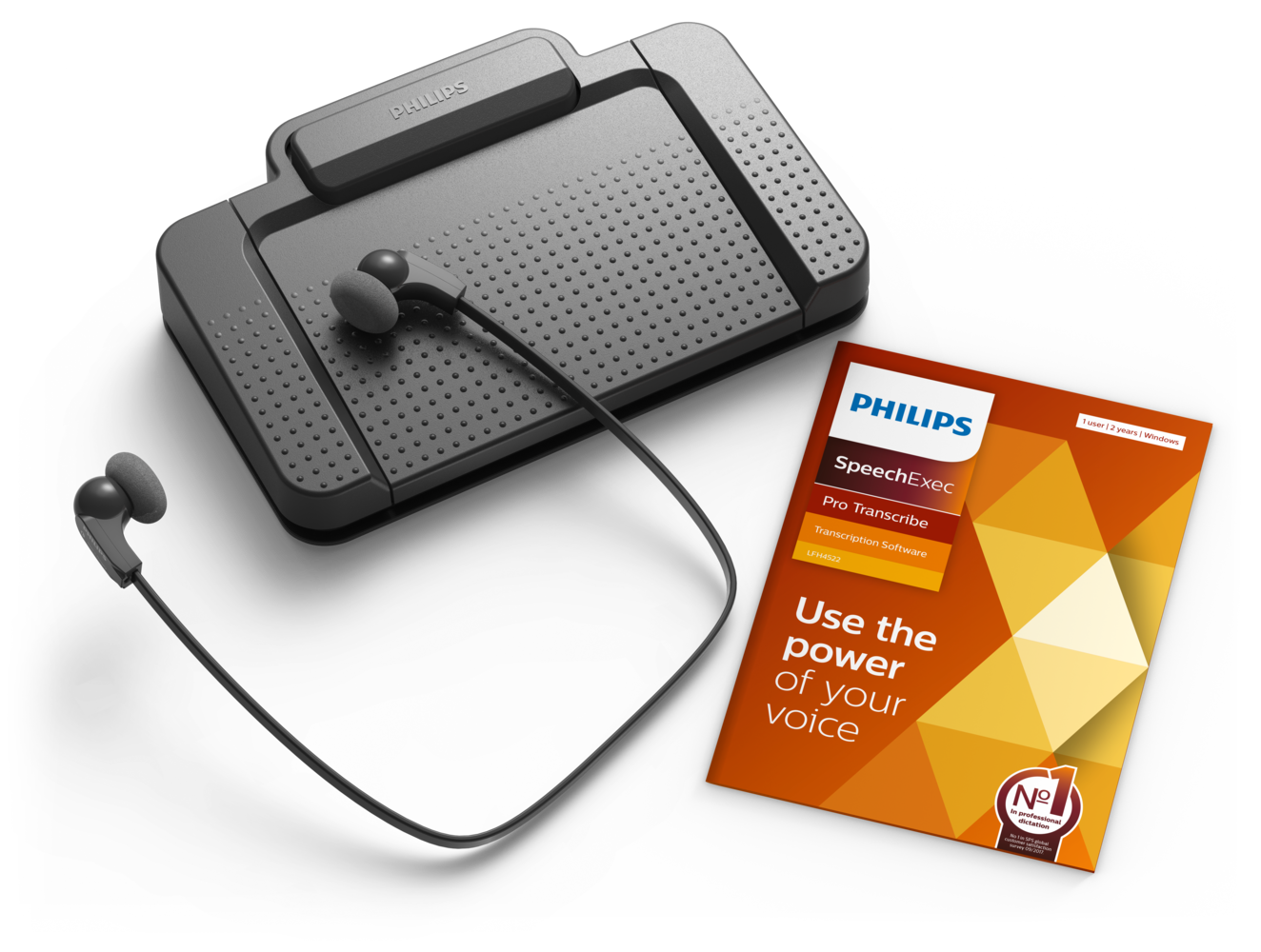

Package contents

SpeechExec Pro Transcription Software (2-year subscription included)
Stereo Headphones LFH0334
USB Foot Control ACC2330
Quick start guide
